8-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE

    Categories

    TP-Link TL-SF1008LP 8-Port Fast Ethernet PoE SwitchTP-Link TL-SF1008LP Ethernet ports with cables connectedTP-Link TL-SF1008LP switch in a home network setupSmall business network powered by TP-Link TL-SF1008LP PoE switch
    TP-Link
    TP-Link TL-SF1008LP 8-Port Fast Ethernet PoE Switch
    TP-Link TL-SF1008LP Ethernet ports with cables connected
    TP-Link TL-SF1008LP switch in a home network setup
    Small business network powered by TP-Link TL-SF1008LP PoE switch

    Share this product on social media

    SKU: TPL-TL-SF1008LP
    TP-Link Shop TP-Link

    TL-SF1008LP 8-Port Fast Ethernet Unmanaged PoE Switch, offers seamless network expansion with Power over Ethernet, plug-and-play installation reliable performance

    MPN: TL-SF1008LP
    Warranty: MFR - Lifetime - Terms Apply



    Product Description


    Professional Fast Ethernet Switch with 4 PoE Ports - Plug and Play, with PoE Transmission for Surveillance up to 250 m

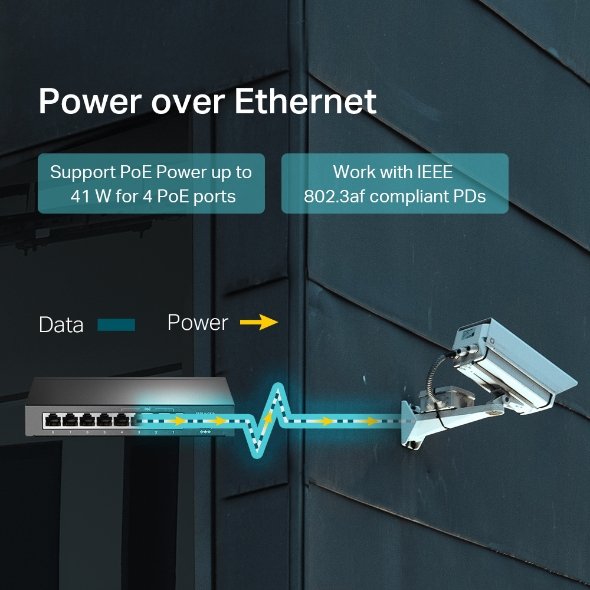

    • Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
    Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

    • Priority Video Quality Guaranteed
    Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

    • Intelligent Power Management
    When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

    • Durable Metal Casing
    The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
    Technical Specifications
    Housing material Metal MAC address table 2000 entries
    Switching capacity 1.6 Gbit/s Jumbo frames support Yes
    Jumbo frames 2000 DHCP features DHCPv6 relay
    IPv4 & IPv6 features IPv6 portal Rack mounting No
    Fanless Yes Power supply included No
    Power over Ethernet (PoE) Yes Heat dissipation 160.61 BTU/h
    Forwarding rate 1.1904 Mpps Store-and-forward Yes
    Power source DC/PoE User guide Yes
    Auto-negotiation Yes Input current 0.81 A
    Number of fans 0 fan(s) Power connector DC-in jack
    Copper ethernet cabling technology 10GBASE-T, 100BASE-TX DC input voltage 53.5 V
    Total Power over Ethernet (PoE) budget 41 W Stackable No
    MAC address auto-learning supported Yes MAC address auto-aging supported Yes
    Full duplex Yes Power over Ethernet (PoE) ports quantity 4
    Half duplex Yes Routing protocols OSPF
    Bandwidth 1.6 Gbit/s Package height 68 mm
    Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
    AC input voltage 220 V AC input frequency 50 Hz
    Width 171 mm Depth 98 mm
    Height 27 mm Sustainability compliance Yes
    LED indicators Yes Networking standards IEEE 802.3af, IEEE 802.3x
    Storage temperature (T-T) -40 - 70 °C Storage relative humidity (H-H) 5 - 90%
    Package width 223 mm Package depth 280 mm
    Product colour Black Package weight 750 g
    Cables included AC Wall mountable Yes
    AC adapter included Yes Harmonized System (HS) code 85176990
    Power consumption (max) 47.1 W Compliance certificates CE, Federal Communications Commission (FCC), RoHS
    Switch type Unmanaged Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) Fast Ethernet (copper) ports quantity 8
    10G support No Flow control support Yes
    Auto MDI/MDI-X Yes
